Raw Data

The data streams available in the system with default fields and user created fields are located in the [Raw Data] menu.

Introduction

At the top of the window you can find the standard search bar, time ranges menu, etc., these elements are described in User Interface . This view displays the netflow stream by default. To change it to another one, you need to do it in the searchbar.

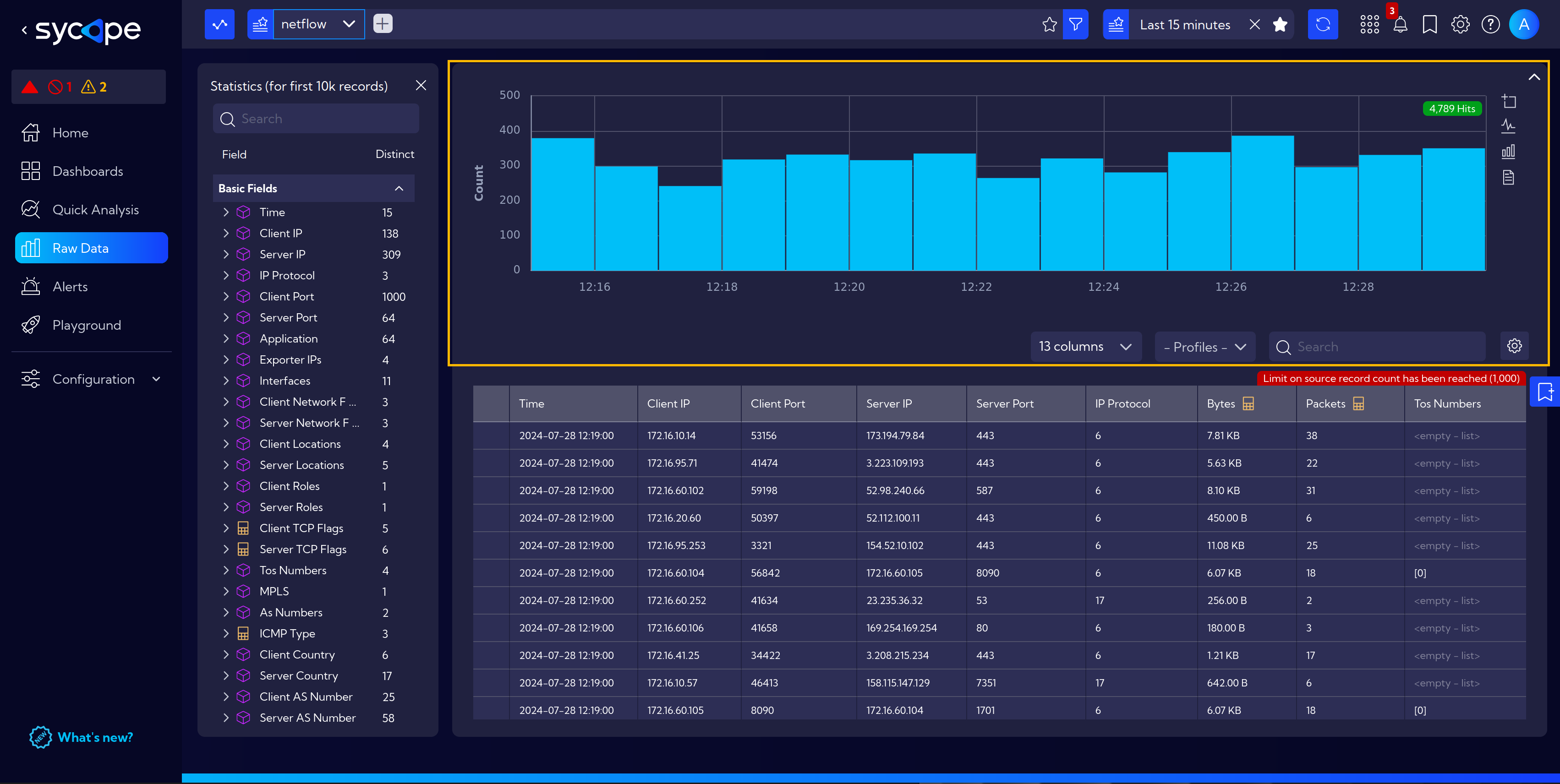

Above the table there is a graph in which the number of records recorded in the system in a unit of time is shown in bars on the timeline. In the table, the individual rows show the fields available for a given record in the selected data stream.

info

In the table, for better readability of the data, the number of records displayed was limited to 1000.

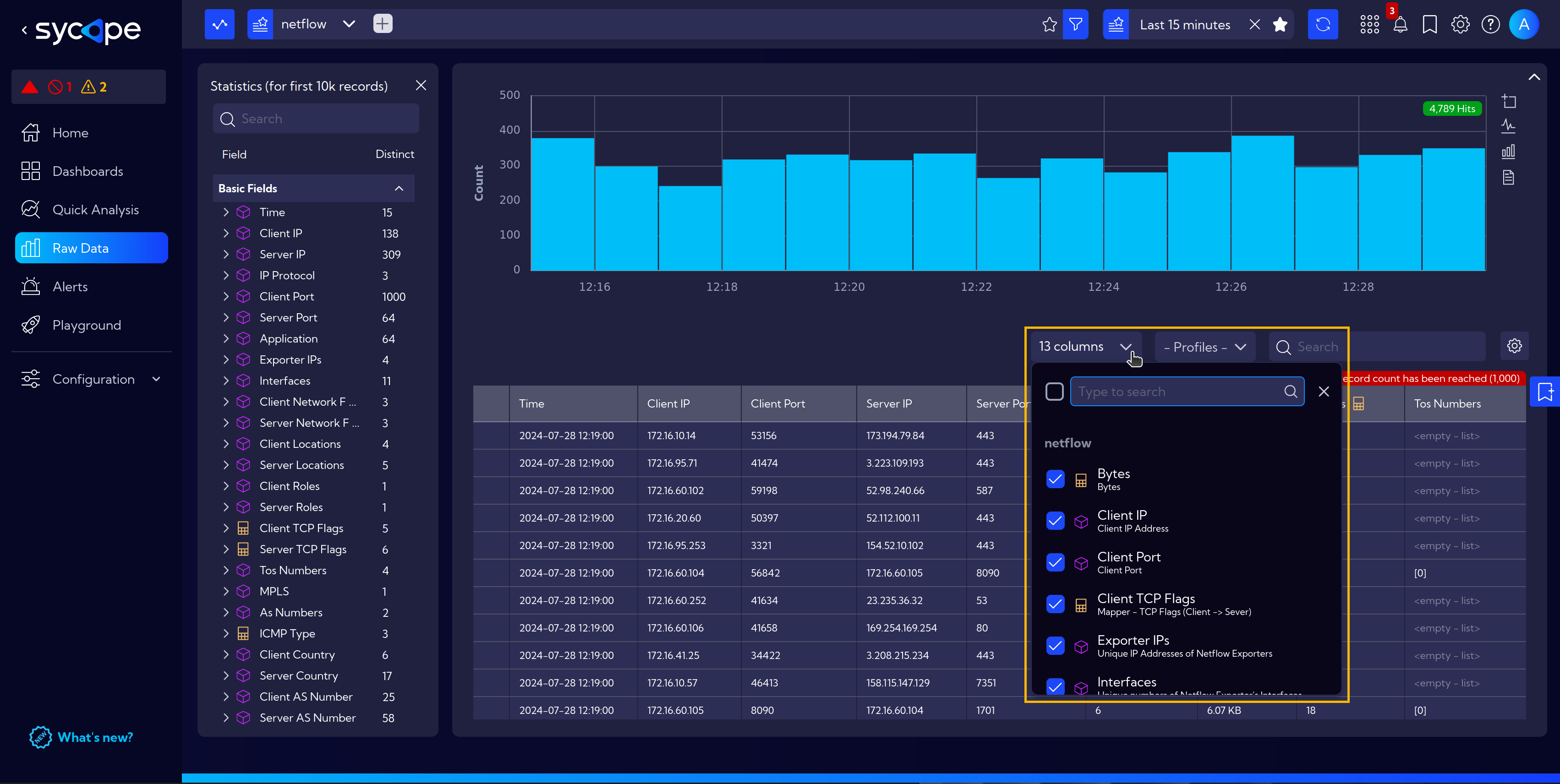

Selecting which columns are displayed in the table is configured in the drop-down menu.

In the System, the data streams are stored for a certain period of time, which is configured in the Retention menu. For performance and resource reasons, the netflow stream is usually kept as short as possible. You can see the range of available data in the chart by selecting a time period longer than the one configured in Retention for a given data stream. In this case, netflow is stored for up to 3 hours.

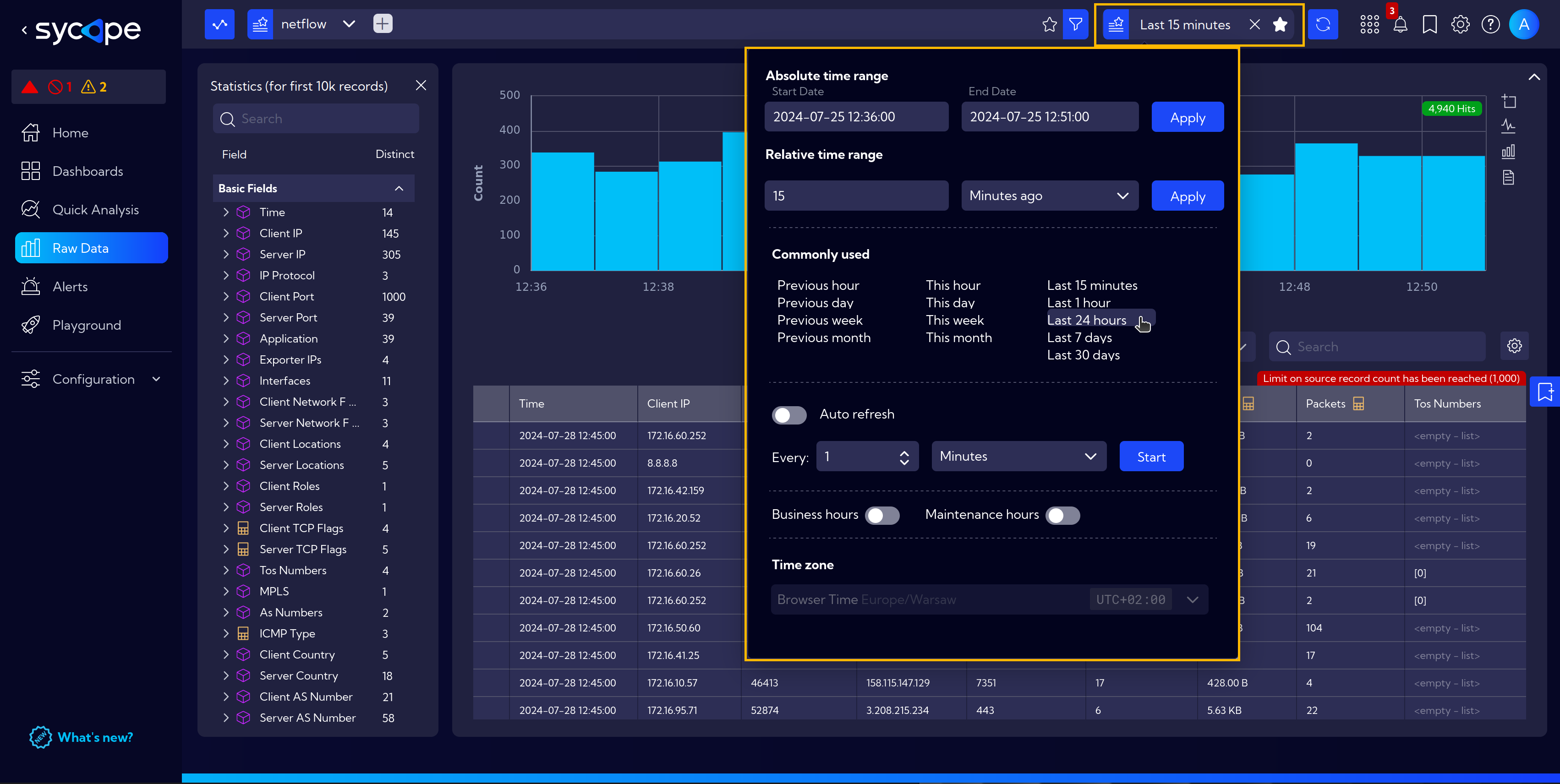

Setting the time range to Last 12 hours you will see the records available in blue, the gray color presents the number of records that were available in the netflow stream while now this information is stored in the aggregated stream.

For aggregated streams, you have the ability to select the time resolution (auto/1 minute/10 minutes/1 hour/1 day) and you can select data due to traffic from the client or from the server (both/client/server).

---

Advanced View

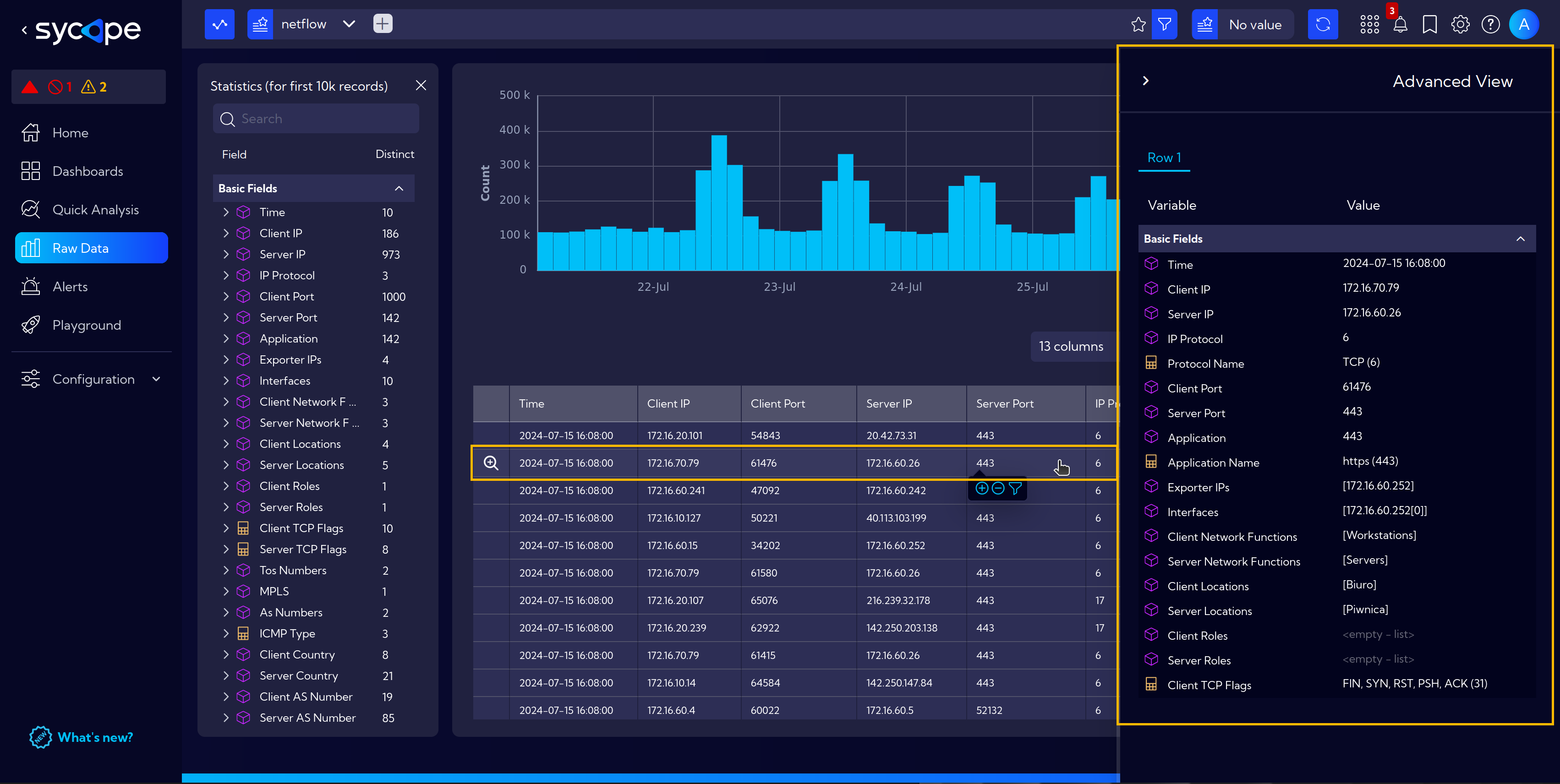

After selecting a particular row by clicking on the row, a menu with Advanced View will open. All the variables, fields and values associated with the given record are available here.

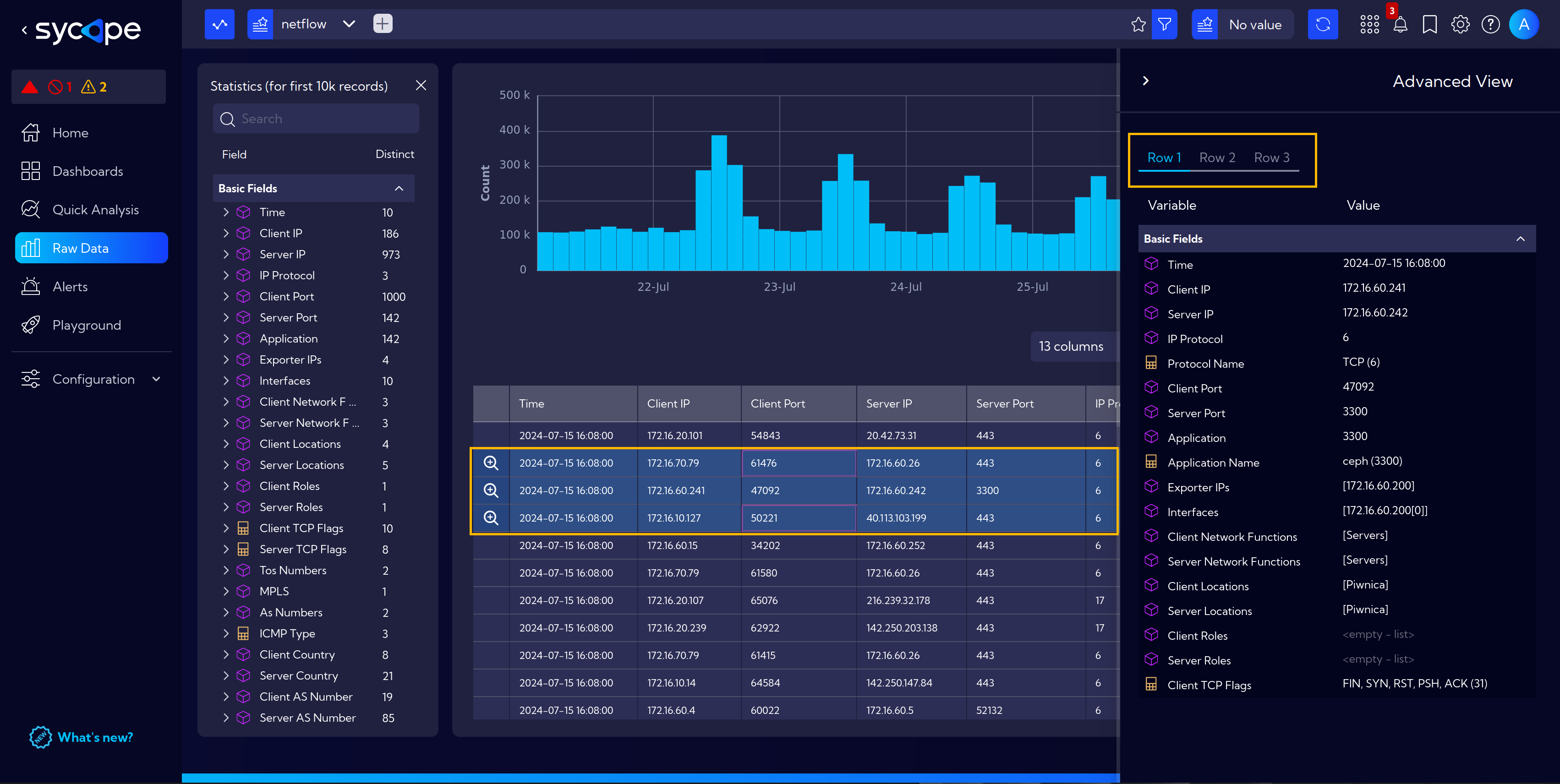

When you select more rows in the table, the corresponding tabs will appear in the Advanced View menu.

---

Right Click Menu

After right-clicking on a row, a Right Click menu with the following options will be shown:

• Action
  • Add value to lookup - adds the value to a lookup
• Rest Client - sends an alert to another system using the REST CLIENT functionality
• Resolve
  • RIPE - searches in the RIPE database
  • DNS for all values - resolves DNS for all IP addresses in the table
  • DNS - resolves DNS for the selected IP address
  • Ns lookup - queries a DNS Domain Name Server to the lookup to find DNS Records and IP address information
• Net mask Search - access to quick IP network mask filter
• Tools
  • Ping - simple PING tool
• Mitigation
  • Block host by IP - address blocking when the system is integrated with the MACMON probe
• Custom - you can create Your own Right Click action configured in the [Configuration>Objects>Right Click Actions] menu

---

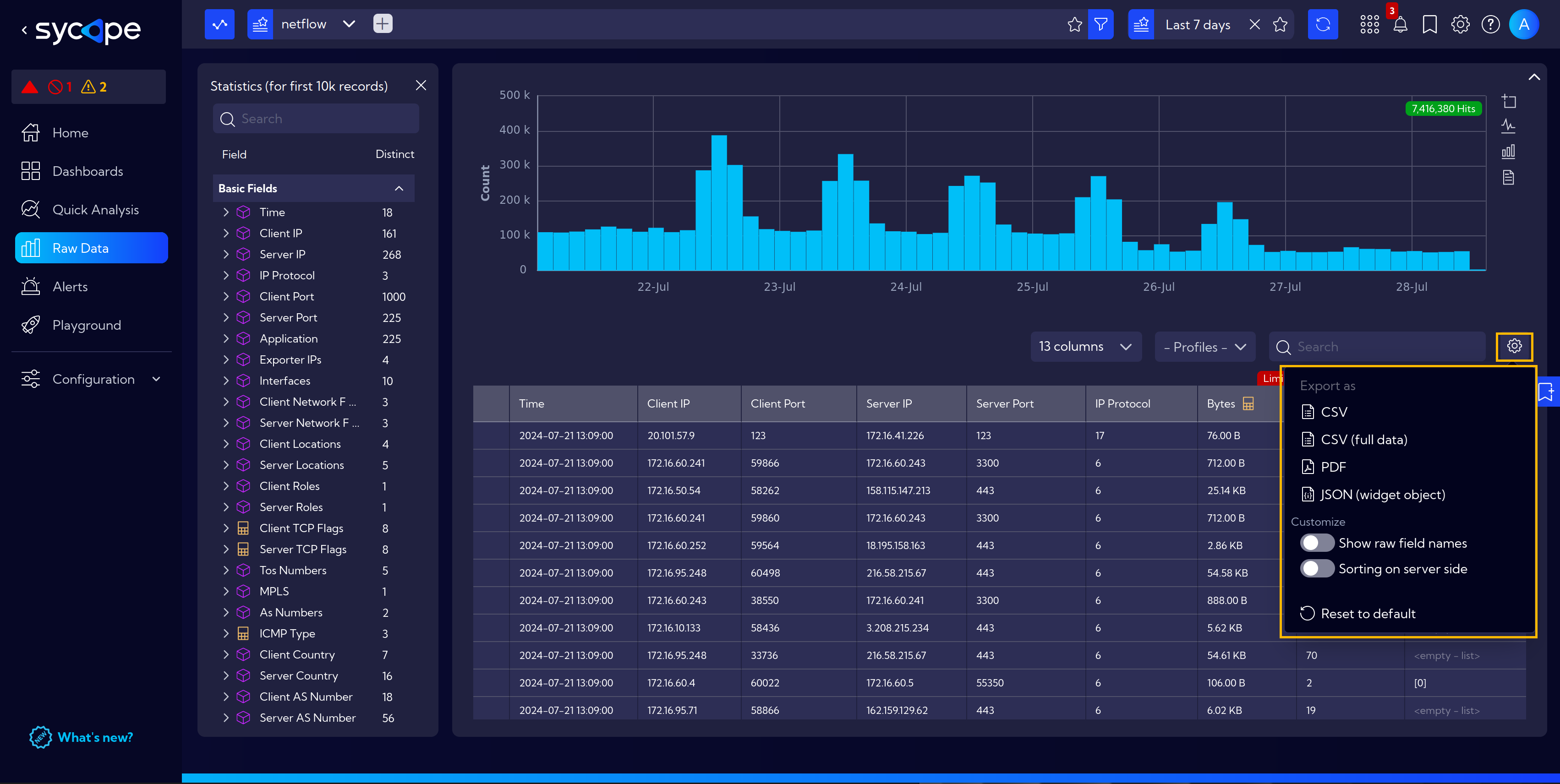

Settings menu

The settings menu is accessed by pressing the icon.

The following actions are available here:

• Server sorting switch

  • off - sorting is performed on records previously retrieved by the browser from the database (limited to 1000 records)
  • on - sorting is performed on the database and then retrieved by the browser (limited to 1000 records)

• Export as

  • CSV - export alerts to CSV files which are displayed in the table (limited to 1000 records)
  • PDF - export alerts to PDF files which are displayed in the table (limited to 1000 records)
  • PNG - export alerts to PNG files which are displayed in the table (limited to 1000 records)
  • Full CSV Export - export all alerts that are in the System (database)

---

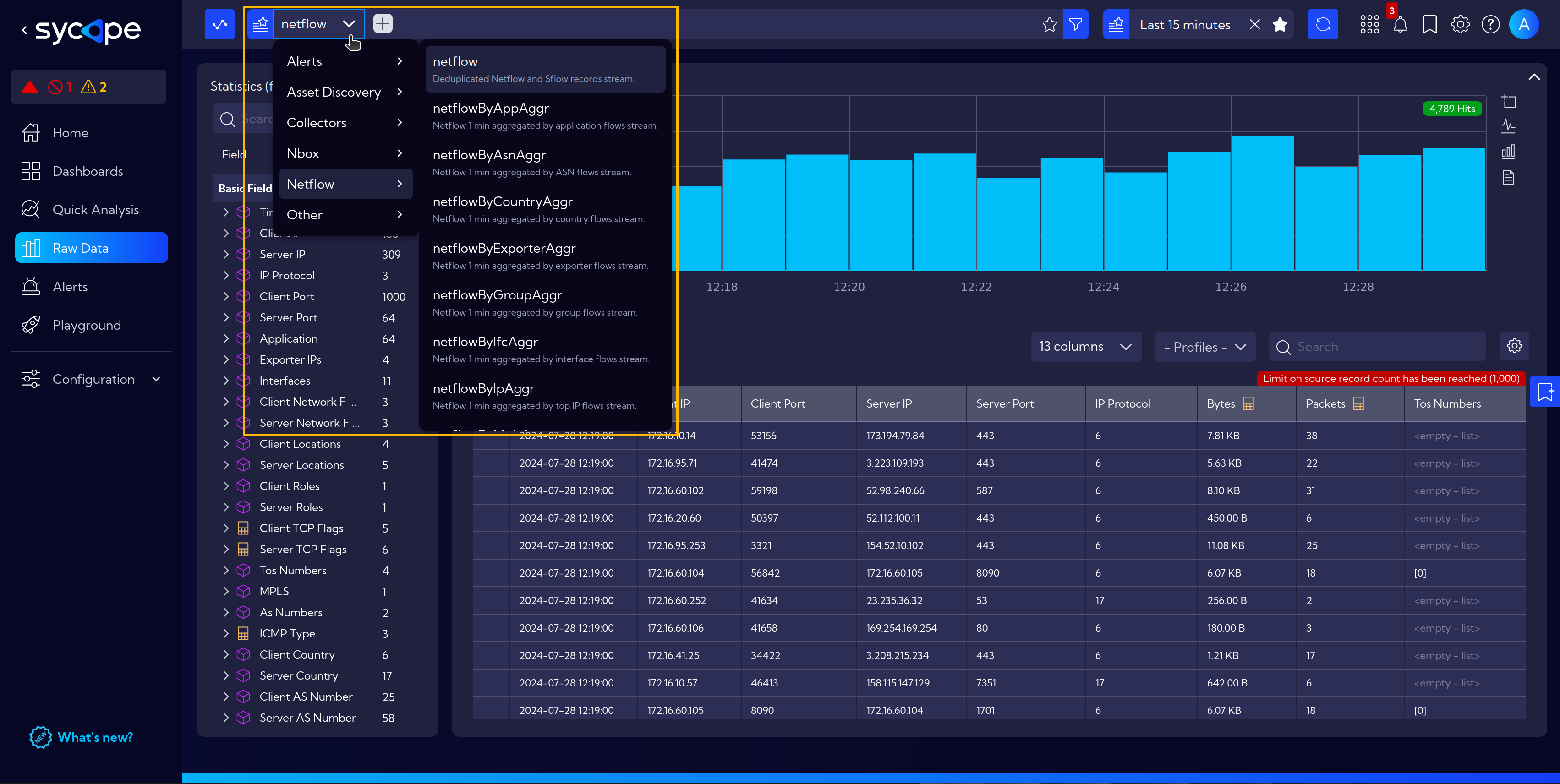

System Data streams

In the System, Data streams are categorized into four groups:

• Alerts
• Collectors
• Netflow
• Other

The tables below show the default fields with descriptions for each of the four groups listed above.

Alerts

Alerts stream.

alerts

Display Name	NQL Name	Description
Day Of Week	DayOfWeek	Day of Week
Avg Bytes/pkt	_avgBytesPerPacket	Metric calculated Sum of Bytes/packet
Count Sessions	_countSessions	Metric calculated Count Sessions
Count SYN	_countSyn	Metric calculated Count of SYN Flags
Unique Server Ports	_countUniqueServerPorts	Metric calculated Count of Unique Server Ports
First BL Port Description	_firstBlPortDescription	Metric calculated First of Blacklisted Port Description
First Client Function	_firstClientFunction	Metric calculated First Client Function
First OT Port Description	_firstOtPortDescription	Metric calculated First of OT Port Description
First P2P Port Description	_firstP2pPortDescription	Metric calculated First of P2P Port Description
First Server Function	_firstServerFunction	Metric calculated First Server Function
Join Client IPs	_joinClientIPs	Metric calculated Join of Client IPs
Join Client TCP Flags	_joinClientTCPFlags	Metric calculated Join of Client TCP Flags
Original Alert Names	_joinOriginalAlertNames	Metric calculated Join of Alert Names
Join Server IPs	_joinServerIPs	Metric calculated Join of Server IPs
Join Server Ports	_joinServerPorts	Metric calculated Join of Server Ports
Join Server TCP Flags	_joinServerTCPFlags	Metric calculated Join of Server TCP Flags
Max Client Network Time	_maxClientNetworkTime	Metric calculated maximal value of Client Network Time
Max Initial Server Response Time	_maxInitialServerResponseTime	Metric calculated maximal value of Initial Server Response Time
Max Server Network Time	_maxServerNetworkTime	Metric calculated maximal value of Server Network Time
Sum Bits/s	_sumBitsPerSecond	Metric calculated Sum of Bits/s by Interval
Sum Bits/s Critical	_sumBitsPerSecond0baselineCritical
Sum Bits/s Major	_sumBitsPerSecond0baselineMajor
Sum Bits/s Minor	_sumBitsPerSecond0baselineMinor
Sum Bytes	_sumBytes	Metric calculated Sum of Bytes.
Sum Bytes Critical	_sumBytes0baselineCritical
Sum Bytes Major	_sumBytes0baselineMajor
Sum Bytes Minor	_sumBytes0baselineMinor
Sum Client Packets	_sumClientPackets	Metric calculated Sum of Client Packets
Sum Flows	_sumFlows	Metric calculated Sum of Flows
Sum FLows Critical	_sumFlows0baselineCritical
Sum FLows Major	_sumFlows0baselineMajor
Sum FLows Minor	_sumFlows0baselineMinor
Sum Packets	_sumPackets	Metric calculated Sum of Packets
Sum Packets Critical	_sumPackets0baselineCritical
Sum Packets Major	_sumPackets0baselineMajor
Sum Packets Minor	_sumPackets0baselineMinor
Sum Packets/flow	_sumPacketsPerFlow	Metric calculated Sum of Packets Per Flow
Sum Packets/s	_sumPacketsPerSecond	Metric calculated Sum of Packets/s by Interval
Sum Packets/s Critical	_sumPacketsPerSecond0baselineCritical
Sum Packets/s Major	_sumPacketsPerSecond0baselineMajor
Sum Packets/s Minor	_sumPacketsPerSecond0baselineMinor
Sum Server Bytes	_sumServerBytes	Metric calculated Sum of Server Bytes
Sum Server Packets	_sumServerPackets	Metric calculated Sum of Server Packets
Unique Client ASNs	_uniqueClientAsn	Metric calculated Count of Unique Client ASNs
Unique Client IPs	_uniqueClientIPs	Metric calculated Count of Unique Client IPs
Unique Count Alerts	_uniqueCountAlerts	Metric calculated Count of Unique Alert Names
Unique Server IPs	_uniqueServerIps	Metric calculated Count of Unique Server IPs
ACK Time	alertAckLastUpdate	Acknowledge flag update Time
ACK User	alertAckUser	User updating the Acknowledge flag
Comment	alertComment	Comment
Comment Time	alertCommentLastUpdate	Comment update time
Commented User	alertCommentUser	User updating a comment
Alert Definition Id	alertDefId	Alert Definition Identifier
False Positive	alertFalsePositive	Alert handling False Positive flag
False Positive Time	alertFalsePositiveLastUpdate	False Positive flag update time
False Positive User	alertFalsePositiveUser	User updating the False Positive flag
Threshold Level	alertFlagThresholdLevel	Threshold Level (Critical, Major, Minor)
Mitre Technique Id	alertMitreId	Mitre ATT&CK Technique Id
Mitre Subtechnique	alertMitreSubtechnique	Mitre ATT&CK Subtechnique
Mitre Tactic	alertMitreTactic	Mitre ATT&CK Tactic
Mitre Technique	alertMitreTechnique	Mitre ATT&CK Technique
Alert Name	alertName	Alert Name
Rule Id	alertRuleId	Rule Identifier
Rule Type	alertRuleType	Rule Type
ACK	alertSeen	Setting the Acknowledge flag
Alert Severity	alertSeverity	Alert Severity
Alert Tags Names	alertTagsNames	Lookup - Tags ids as Tags names
Application	application	Application Number
Application Name	applicationName	Mapper - Application Number as Application Name
Client AS Name	clientAsName	Mapper - AS Number as AS Name from build-in database
Client Country	clientCountry	Country of Client IP Addresses
Client IP	clientIp	Client IP Address
Client Private	clientPrivate	Client Private
Dns Query	dnsQuery	DNS query
Http Host Name	httpHost	HTTP host name
Alert Id	id	Alert Identifier
JA3 Client Hash	ja3cHash	JA3 client hash
JA3 Server Hash	ja3sHash	JA3 server hash
IP Protocol	protocol	Protocol Number
Protocol Name	protocolName	Mapper - IP Protocol as Protocol Name
Server AS Name	serverAsName	Mapper - AS Number as AS Name from build-in database
Server Country	serverCountry	Country of Server IP Addresses
Server IP	serverIp	Server IP address
serverPort	serverPort	Server port
Server Private	serverPrivate	Server Private
Time	timestamp	Alert Time

Collectors

Data streams for build-in collectors.

Collector name	Description
top1000IPsLast2Minutes	Collect Top 10k IPs in Last 2 Minutes Timeline with the highest sessions (at least more than 1 k) and packets count more than 1k.
top10ClientIpLast15Minute_Alerts	Collect TOP 10 Client IPs in the last 15 Minute.
top10ClientIpLast15Minute	Collect TOP 10 Client IPs in Last 15 Minute Timeline.
top10ServerIpLast15Minute	Collect TOP 10 Server IPs in Last 15 Minute Timeline.

Netflow

netflow

Deduplicated Netflow and Sflow records stream.

Display Name	NQL Name	Description
Day Of Week	DayOfWeek	Day of Week
Active Time	activeTime	Active Time of unique flow (session)
Application	application	Application Number
Application Id	applicationId	Mapper - Application ID
Application Name	applicationName	Mapper - Application Number as Application Name
AS Name	asName	Mapper - AS Number to AS Name from build-in database
As Numbers	asNumbers	Unique Autonomous Systems Numbers
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client AS Name	clientAsName	Mapper - AS Number as AS Name from build-in database
Client AS Number	clientAsNumber	AS Number of Client IP Addresses
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits Per Packet	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Client Bits Per Second	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Country	clientCountry	Country of Client IP Addresses
Client Function	clientFunction	Function Group of Client IP Addresses
Client IP	clientIp	Client IP Address
Client IP Name	clientIpName	Client IP Name
Client Location	clientLocation	Location Group of Client IP Addresses
Client Max TTL	clientMaxTtl	Max TTL (Client -> Sever)
Client Network Time	clientNetworkTime	Network Latency (Client -> Server)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets Per Second	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Client Port	clientPort	Client Port
Client Private	clientPrivate	Client Private
Client Role	clientRole	Role Group of Client IP Addresses
Client TCP Flags	clientTcpFlags	Mapper - TCP Flags (Client -> Sever)
DNS Error Return Code Names	dnsErrorReturnCodeNames	DNS Error Return Code Names
Dns Query Type Name	dnsQueryTypeName	Dns Query Type Name
Exporter IPs	exporterIps	Unique IP Addresses of Netflow Exporters
Exporter Name	exporterName	Lookup - Exporter IP as Exporter Name from SNMP database
First Timestamp	firstTimestamp	First Timestamp of unique flow (session)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
ICMP Type	icmpType	Mapper - ICMP Type
Initial Server Response Time	initialServerResponseTime	Response Time (Latency) (Application)
Interfaces	interfaces	Unique numbers of Netflow Exporter's Interfaces
IPv6 Option Headers	ipv6OptionHeaders	Mapper - IPv6 Option Headers
Last Timestamp	lastTimestamp	Last Timestamp of unique flow (session)
MPLS	mpls	Unique MPLS Labels
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
% In Retransmitted Packets	percentRetransmittedInPackets	% Retransmitted Packets (In)
% Out Retransmitted Packets	percentRetransmittedOutPackets	% Retransmitted Packets (Out)
IP Protocol	protocol	Protocol Number
Protocol Name	protocolName	Mapper - IP Protocol as Protocol Name
Retransmitted In Bytes	retransmittedInBytes	Retransmitted Bytes (Incoming)
Retransmitted In Packets	retransmittedInPackets	Retransmitted Packets (Incoming)
Retransmitted Out Bytes	retransmittedOutBytes	Retransmitted Bytes (Outgoing)
Retransmitted Out Packets	retransmittedOutPackets	Retransmitted Packets (Outgoing)
Server AS Name	serverAsName	Mapper - AS Number as AS Name from build-in database
Server AS Number	serverAsNumber	AS Number of Server IP Addresses
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits Per Second	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Country	serverCountry	Country of Server IP Addresses
Server Function	serverFunction	Function Group of Server IP Addresses
Server IP	serverIp	Server IP Address
Server IP Name	serverIpName	Server IP Name
Server Location	serverLocation	Location Group of Server IP Addresses
Server Network Time	serverNetworkTime	Network Latency (Server -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets Per Second	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Server Port	serverPort	Server Port
Server Private	serverPrivate	Server Private
Server Role	serverRole	Role Group of Server IP Addresses
Server TCP Flags	serverTcpFlags	Mapper - TCP Flags (Sever -> Client)
Session ID	sessionId	Session ID within minute interval
Time	timestamp	Time
ToS Names	tosNames	Mapper - ToS Number / Numbers as ToS Name
Tos Numbers	tosNumbers	Unique Type of Service values

---

netflowByAppAggr

Netflow 1 min aggregated by application flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Application	application	Application Number
Application Name	applicationName	Mapper - Application Number as Application Name
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Network Time	clientNetworkTime	Network Latency (Client -> Server)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Client TCP Flags	clientTcpFlags	Mapper - TCP Flags (Client -> Sever)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Initial Server Response Time	initialServerResponseTime	Response Time (Latency) (Application)
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
% In Retransmitted Packets	percentRetransmittedInPackets	% Retransmitted Packets (In)
% Out Retransmitted Packets	percentRetransmittedOutPackets	% Retransmitted Packets (Out)
Retransmitted In Packets	retransmittedInPackets	Retransmitted Packets (Incoming)
Retransmitted Out Packets	retransmittedOutPackets	Retransmitted Packets (Outgoing)
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Network Time	serverNetworkTime	Network Latency (Server -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Server TCP Flags	serverTcpFlags	Mapper - TCP Flags (Sever -> Client)
Time	timestamp	Time

---

netflowByAsnAggr

Netflow 1 min aggregated by ASN flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
AS Name	asName	Mapper - AS Number to AS Name from build-in database
AS Number	asNumber	AS Number
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Direction	direction	Mapper - Direction (Client, Server or Both)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

---

netflowByCountryAggr

Netflow 1 min aggregated by country flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Country Name	country	Country Name
Direction	direction	Mapper - Direction (Client, Server or Both)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

---

netflowByExporterAggr

Netflow 1 min aggregated by exporter flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bytes	bytes	Bytes
Exporter Description	exporterDescription	Lookup - Exporter IP as Exporter Description from SNMP database
Exporter IP	exporterIp	Exporter IP
Exporter Location	exporterLocation	Lookup - Exporter IP as Exporter Location from SNMP database
Exporter Name	exporterName	Lookup - Exporter IP as Exporter Name from SNMP database
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Time	timestamp	Time

---

netflowByGroupAggr

Netflow 1 min aggregated by group flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Direction	direction	Mapper - Direction (Client, Server or Both)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Group Name	group	Group Name
Group Type	groupType	Group Type
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

---

netflowByIfcAggr

Netflow 1 min aggregated by interface flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bytes	bytes	Bytes
Exporter IP	exporterIp	Exporter IP
Exporter Name	exporterName	Lookup - Exporter IP as Exporter Name from SNMP database
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Interface Index	ifcIndex	Interface Index
Interface Name	ifcName	Lookup - Interface Index as Interface Name from SNMP database
Interface Speed	ifcSpeed	Lookup - Interface Index as Interface Speed from SNMP database
In Bits	inBits	Bits (In)
In Bits/s	inBitsPerSecond	Bits (In) per Interval
In Bytes	inBytes	Bytes (In)
In Packets	inPackets	Packets (In)
In Packets/s	inPacketsPerSecond	Packets (In) per Interval
Out Bits	outBits	Bits (Out)
Out Bits/s	outBitsPerSecond	Bits (Out) per Interval
Out Bytes	outBytes	Bytes (Out)
Out Packets	outPackets	Packets (Out)
Out Packets/s	outPacketsPerSecond	Packets (In) per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
% In Utilization	percentInUtilization	% Utilization (In)
% Out Utilization	percentOutUtilization	% Utilization (Out)
Time	timestamp	Time

---

netflowByIpAggr

Netflow 1 min aggregated by top IP flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
AS Name	asName	Mapper - AS Number to AS Name from build-in database
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Network Time	clientNetworkTime	Network Latency (Client -> Server)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/flow	clientPacketsPerFlow	Packets per Flow (Client -> Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Client TCP Flags	clientTcpFlags	Mapper - TCP Flags (Client -> Sever)
Country Code	countryCode	Lookup - IP Address as Country Code from build-in database
Direction	direction	Mapper - Direction (Client, Server or Both)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Initial Server Response Time	initialServerResponseTime	Response Time (Latency) (Application)
IP Address	ipAddress	IP Address
IP Address Name	ipAddressName	IP Address Name
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
% In Retransmitted Packets	percentRetransmittedInPackets	% Retransmitted Packets (In)
% Out Retransmitted Packets	percentRetransmittedOutPackets	% Retransmitted Packets (Out)
Retransmitted In Packets	retransmittedInPackets	Retransmitted Packets (Incoming)
Retransmitted Out Packets	retransmittedOutPackets	Retransmitted Packets (Outgoing)
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/flow	serverBitsPerFlow	Bits per Flow (Sever -> Client)
Server Bits/pkt	serverBitsPerPacket	Bits per Packet (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Network Time	serverNetworkTime	Network Latency (Server -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/flow	serverPacketsPerFlow	Packets per Flow (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Server TCP Flags	serverTcpFlags	Mapper - TCP Flags (Sever -> Client)
Time	timestamp	Time

---

netflowByMplsAggr

Netflow 1 min aggregated by MPLS flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
MPLS Labels	mpls	Unique MPLS Labels
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

---

netflowByProtocolAggr

Netflow 1 min aggregated by IP protocol flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Protocol	protocol	Protocol Number
Protocol Name	protocolName	Mapper - IP Protocol as Protocol Name
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

---

netflowByTosAggr

Netflow 1 min aggregated by TOS flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time
ToS Name	tosName	Mapper - ToS Number / Numbers as ToS Name
ToS Number	tosNumber	ToS Number

netflowTotalAggr

Netflow 1 min aggregated.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Bits	bits	Bits
Bits/s	bitsPerSecond	Bits per Interval
Bits/s (AT)	bitsPerSecondActiveTime	Bits per Active Time
Bytes	bytes	Bytes
Client Bits	clientBits	Bits (Client -> Sever)
Client Bits/flow	clientBitsPerFlow	Bits per Flow (Client -> Sever)
Client Bits/pkt	clientBitsPerPacket	Bits per Packet (Client -> Sever)
Clients Bits/s	clientBitsPerSecond	Bits per Interval (Client -> Sever)
Client Bits/s (AT)	clientBitsPerSecondActiveTime	Bits per Active Time (Client -> Sever)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Client Packets/s	clientPacketsPerSecond	Packets per Interval (Client -> Sever)
Client Packets/s (AT)	clientPacketsPerSecondActiveTime	Packets per Active Time (Client -> Sever)
Flows	flows	Flows sent by Exporter
Flows/s	flowsPerSecond	Flows per Interval
Packets	packets	Packets
Packets/s	packetsPerSecond	Packets per Interval
Packets/s (AT)	packetsPerSecondActiveTime	Packets per Active Time
Server Bits	serverBits	Bits (Sever -> Client)
Server Bits/s	serverBitsPerSecond	Bits per Interval (Sever -> Client)
Server Bits/s (AT)	serverBitsPerSecondActiveTime	Bits per Active Time (Sever -> Client)
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Server Packets/s	serverPacketsPerSecond	Packets per Interval (Sever -> Client)
Server Packets/s (AT)	serverPacketsPerSecondActiveTime	Packets per Active Time (Sever -> Client)
Time	timestamp	Time

Others

auditMessages

Audit messages stream.

Display Name	NQL Name	Description
ID	id
Success	isSuccess
Message	message
Method name	methodName
Time	timestamp
User	user

---

metrics

System metrics stream.

Display Name	NQL Name	Description
Number of analyzers	analyzersCount	Number of configured netty analyzers.
Available space	avail	Available space
Conversations processed	conversationsProcessed	Total number of processed conversations.
Idle Raw in ticks	cpuIdleRaw	Idle Raw in ticks.
CPU ID	cpuName	The CPU ID.
Nice Raw in ticks	cpuNiceRaw	Nice Raw in ticks.
System Raw in ticks	cpuSystemRaw	System Raw in ticks.
CPU Utilization	cpuUsed	The percentage cpu utilization value.
User Raw in ticks	cpuUserRaw	User Raw in ticks.
Deletes error	deleteErrors	Total number of deleting errors.
Deletes number	deleteNum	Total number of deleting operations.
DISK ID	diskName	The DISK ID.
Dropped packets	dropped	Dropped packets.
Errors	errors	Number of errors during decoding.
Exporter IP	exporterIp	Netflow sender IP address.
Filter name	filterName	Filter name.
Filtered Out	filteredOut	Total number of filtered out flows.
Inbound Flows	flows	Total number of processed flows.
Flows analyzed	flowsAnalyzed	Total number of analyzed flows.
Forwarder name	forwarderName	Forwarder name.
Free Memory	free	Free Memory
Decoder index	index	Decoder index.
Index name	indexName	Index name.
Max latency	maxLatency	Maximum latency in ms.
MEM ID	memoryName	The MEM ID.
Messages received	messages	Total number of received messages.
metaSetName	metaSetName	Information field for system maintenance only
Min latency	minLatency	Minimum latency in ms.
Missed Templates	missedTemplates	Total number of missed templates for v9 and v10 flows.
Dropped Packets	packetsDropped	Number of unforwarded packets.
Inbound Packets	packetsIn	Total number of packets entering forwarder.
Outbound Packets	packetsOut	Total number of packets forwarded.
Records analyzed	recordsAnalyzed	Total number of analyzed records.
Service name	serviceName	Service name.
Sflows	sflows	Total number of decoded sflows.
Time	timestamp	Time
Total Size	total	Total Size
UDP bytes received	udpBytes	Number of bytes received.
UDP packets dropped	udpDropped	Total number of dropped UDP packets.
UDP packets received	udpPackets	Total number of received UDP packets.
Unmapped flows	unmappedFlows	Total number of unmapped flows.
Used space	used	Used space
User Percent Memory	usedPercent	The percentage cpu utilization value.
V10 flows	v10flows	Total number of decoded Netflow v10 flows.
V5 flows	v5flows	Total number of decoded Netflow v5 flows.
V9 flows	v9flows	Total number of decoded Netflow v9 flows.
Writes error	writeErrors	Total number of writing errors.
Writes number	writeNum	Total number of writing operations.

---

nboxDnsQueryTypeAggr

Netflow 1 min aggregated by DNS query type stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Dns Query Type	dnsQueryType	DNS query type
Dns Query Type Name	dnsQueryTypeName	Dns Query Type Name
Flows	flows	Flows sent by Exporter
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Time	timestamp	Time

---

nboxDnsReturnCodeAggr

Netflow 1 min aggregated by HTTP return code stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
DNS Error Return Code Names	dnsErrorReturnCodeNames	DNS Error Return Code Names
Dns Return Code	dnsRetCode	DNS return code
Flows	flows	Flows sent by Exporter
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Time	timestamp	Time

---

nboxHttpMethodAggr

Netflow 1 min aggregated by HTTP method flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Flows	flows	Flows sent by Exporter
Http Method	httpMethod	HTTP METHOD
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Time	timestamp	Time

---

nboxHttpReturnCodeAggr

Netflow 1 min aggregated by HTTP return code flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Flows	flows	Flows sent by Exporter
Http Return Code	httpRetCode	HTTP return code
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Time	timestamp	Time

---

nboxHttpUserAgentAggr

Netflow 1 min aggregated by HTTP user agent flows stream.

Display Name	NQL Name	Description
Active Time	activeTime	Active Time of unique flow (session)
Client Bytes	clientBytes	Bytes (Client -> Sever)
Client Packets	clientPackets	Packets (Client > Sever)
Flows	flows	Flows sent by Exporter
Http User Agent	httpUa	HTTP User Agent
Server Bytes	serverBytes	Bytes (Sever -> Client)
Server Packets	serverPackets	Packets (Sever -> Client)
Time	timestamp	Time

---

notifications

System notifications stream.

Display Name	NQL Name	Description
Details	details
ID	id
Severity	level
Description	message
ACK	seen
Source	source
Timestamp	timestamp

---

testdata

Test index account.

Display Name	NQL Name	Description
PD	PD
age	age
balance	balance
country	country
dep	dep
docs	docs
fName	fName
host	host
lName	lName
Time	timestamp
